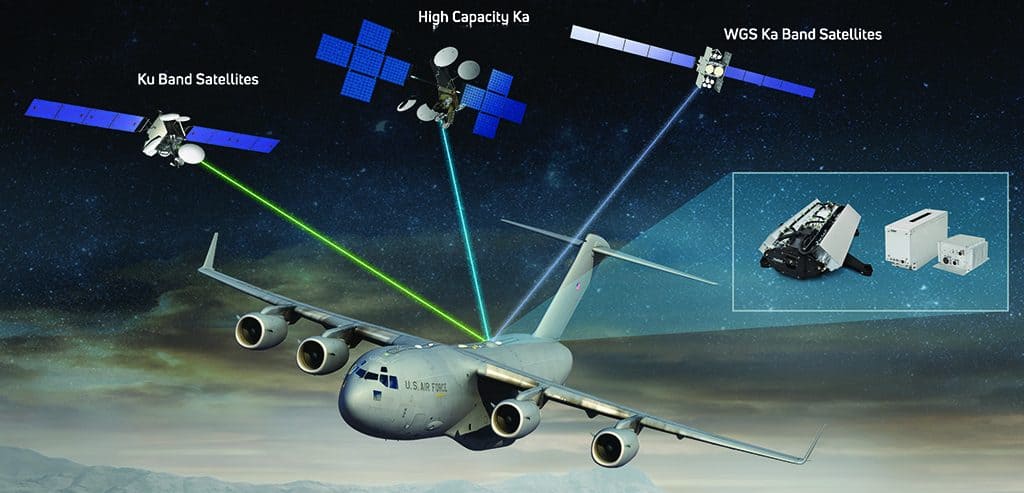

Wideband SatCom phased array

The objective of the activity is to analyse, design, manufacture and test a wideband phased array antenna.
The proposed approach is to target planar antenna solutions based on connected arrays capable of steering a pencil beam over a very wide scan range, up to +/-60 degrees from broadside in all azimuthal planes.

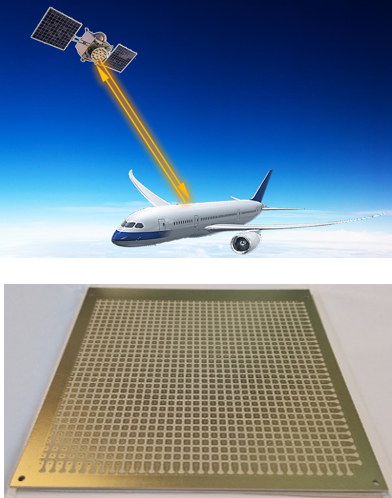

The array should be circularly polarized and based on a simple to manufacture printed circuit board technology.

Requirements

All following courses:

EE4C05    Electromagnetics
EE4510    Advanced Electromagnetics
EE4725    Quasi Optical Systems
EE4620    Spectral Domain Methods in Electromagnetics
