Imaging Needles (INEEDLES)

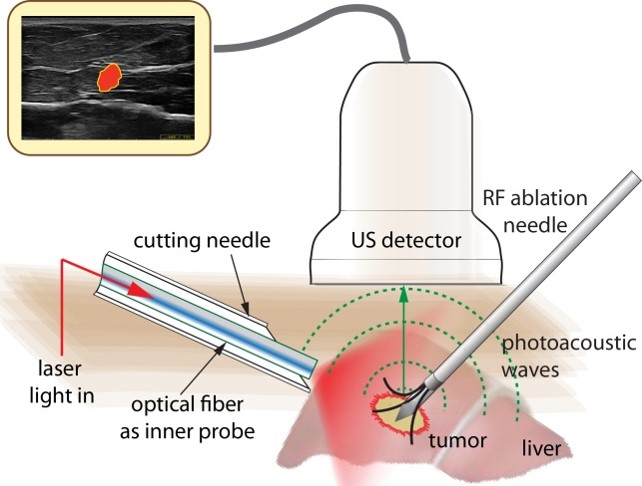

We propose to develop comprehensive technologies that enable photoacoustic (PA) and ultrasound (US) imaging at the tip of a slender probe inserted through a 10 G (OD 3.4 mm; ID 2.7 mm) hollow cutting needle (cannula) into tissue. Two specific prototypes will be developed for interstitial imaging and tissue characterization, with applications in radio-frequency (RF) ablation and in neurosurgery respectively.
Our role in the project is the development of custom integrated electronics to amplify the acoustic echo signals in the probe tip, so as to enable much better signal-to-noise ratio and robustness than what can be achieved with conventional, passive devices.
In this project, the University of Twente and TU Delft (Acoustic Wavefield Imaging and Electronic Instrumentation) are working together with several institutes in India (a.o the Indian Institute of Science and the National Institute of Mental Health and Neurosciences)
Project data
| Researchers: | Zu-yao Chang, Michiel Pertijs |
|---|---|
| Starting date: | August 2018 |
| Closing date: | August 2022 |
| Sponsor: | ZonMW |
| Partners: | Biomedical Photonic Imaging, University of Twente, The Netherlands Laboratory of Acoustical Wavefield Imaging, Faculty of Applied Sciences, Delft University of Technology |
| Contact: | Michiel Pertijs |
